 Iron pot thermo-melt label machine. |
|
![Iron pot thermo-melt label machine.[ BOIP-300 ]](../image/B/BOIP-300.jpg) |
![Iron pot thermo-melt label machine.[ BOIP-300 ]](../image/B/Thermo-labeling.jpg) |
| The feature of this type of machine. |
| 1.Suits mineral water, drink, milk, yogurt, PET, PP, PE round bottle paste attaches the entire surface to use |
| OPP, pearl membrane, compound paper and so on becomes the volume label material. |
| 2.Substitute PVC contraction membrane lebel, cost down 30% above. |
| 3.Before or after the backfill, may paste the label. |
| 4.Feeding label uses an astrolabe to separate bottle, high-speed and stable operation. |
| 5.Feeding label uses the servomoter synchronization tracing and cut-off, matching a vacuum drum high speed |
| adsorption, ensure pastes the label fine and stable. |
| 6.Drive uses gearing design, when high speed pastes the label, stable fine. |
| 7.When the torsion or enters the bottle exceptionally, the safety guard device may auto-stop the machine. |
| 8.Labeling speed adopted two sections of control, high and low speed is easy to switch over. |
| 9.Two rolls label supply system has the tensity control device, under the operation may changing membrane. |
| 10.Pastes the label position can be adjusted. |
| Outer Diameter |
φ40~110mm |
| Label Size |
10~250mm |
| Speed |
250pcs/min. |
|
|
 |
|

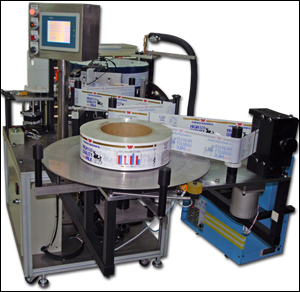

4 Litre square bottle of thermo-melt label machine. |
|
![4 Litre square bottle of thermo-melt label machine.[ BOSB-4000 ]](../image/B/BOSB-4000.jpg) |
|
| The feature of this type of machine. |
| 1.Feeding bottle atificially, paste the label automatically. |
| 2.Full roll of label, enter and punch label automatically, has the electric eye locating point installment. |
| 3.Uses thermo-melt glue and paste to label automatically. |
| 4.Suit for bigger container, for example: 3 liters or 4liters, square or polygon bottle. |
| Item No. |
BOSB-4000 |
| Power |
Electric |
1φ 220V |
| Pneumatic |
5kg per sq.cm. |
| Speed |
7pcs per min. |
| Machine size |
L×W×H |
1700×1200×1800mm |
|
|
|
|

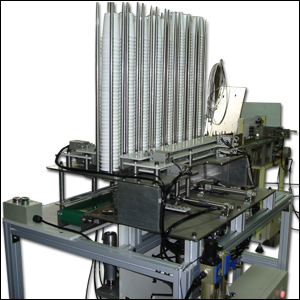

Separate & collection cup machine. |
| |
|
| |
![Separate & collection cup machine.[ BOSC-200 ]](../image/B/BOSC-200.jpg) |
![Separate & collection cup machine.[ BOSC-200 ]](../image/B/Separate-&-collect-cups.jpg) |
| |
The feature of this type of machine. |
| |
1.Plastic cup semblance printing or a set of label, paste the label situation use. |
| |
2.Feed cup into the storage trough artificially, the separate organization can separate automatically. |
| |
3.Plastic cup hit the eyelet in the same time, put in on the conveyor then send out. |
| |
4.Complete after the cup send by conveyor to collection organization will collect into entire fold automatically. |
| |
| Item No. |
BOSC-200 |
| Power |
Electric |
1φ 220V |
| Pneumatic |
5kg per sq.cm. |
| Speed |
200pcs/min. |
| Machine size |
L×W×H |
Separation 1,700×800×1,600mm. |
| Collection 1,100×800×1,200mm. |
|
|
|
