【The feature of this type of machine】

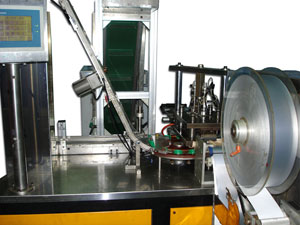

1. Full-automatic work, by aluminum foil reel and release paper tape, simultaneously punching and insert to cap automatically.
2. Can match different size of cap in accordance with the user's demand.
3. To supply the cap material adop climb conveyer by storing hopper, the storage quantity is big, the transportation is steady
4. Cap, aluminum foil reel and release paper, lack material detection and warn automatically.
5. Output trough adopted switching over type, the full material is switched over and warn automatically.
6. Can reset the production quantity, adopted touch control screen adjustment, facilitates accurately and easy to operate.
7. Uses the man-machine contact surface (screen type) to control ,movement procedure and trouble point show automatically, easy to operate.

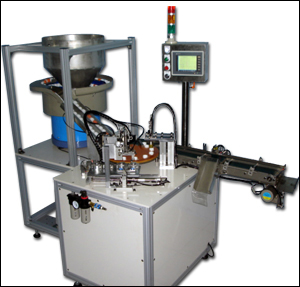

【Item No.】CPTL series

【The feature of this type of machine】

1. This series of machine is designed for 1mm thickness of pre-cut liner, the liner must load in magazine type.
2. Cap direction chosen by vibratory disk, put in plate then insert liner to cap.
3. Finished product will check automatically, when cap lack of liner will automatically ruled out.
4. There are two type organizations option available, with paste and without paste.
5. Replacement different size of work thing size must replace the fixture.

【Item No.】CPSS series

【The feature of this type of machine】

1. Combination top cap & bottom cap by thread, the bottom cap has pull link, the outer diameter about 35mm.
2. Cap input by the storage bin matching vibratory disc to choice and input cap, the storage quantity is big, the transportation is steady.
3. When lack of cap material will automatic detection and alarm.
4. When top and bottom cap combination not good, picks out and the machine off automatically.
5. End product automatic counting the quantity, the quantity may reset at will.
6. Control system uses touch screen, the flow and the fault automatic demonstration, the operation is easy.

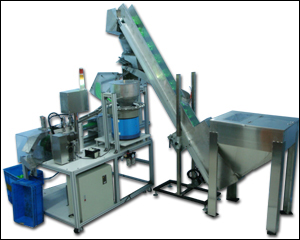

【Item No.】CPDC series

【The feature of this type of machine】

1. Top cap and bottom cap the whole combination of non-thread lamination.
2. Top cap with storage hopper match a vibrating disk, choice direction then feed in.
3. Bottom cap with storage barrel and turntable to chioce direction then feed in.
4. When top cap and bottom cap combination is not good picks out and shut down automatically.
5. When lack of cap materials will automatic detection and warn.
6. End product automatic counting the quantity, the quantity may reset at will.
7. Control panel adopted touch screen, movement flow and the fault point show automatically, easy to operation.

【Item No.】CPLL series

【The feature of this type of machine】

1. Top and bottom cap of hinge cap, completely automatic press fits the assembly.
2. Feed in cap material by vibratory disk.
3. To avoid the abrasion outward appearance while process of press fit.
4. Unloading count traets two trougghs, full material automatic cut over.
5. The man-machine interface, touches controls the type screen easy to operation.

【The feature of this type of machine】

1. Top & bottom cap has external screw thread, mutually blockage.
2. Adopted two storage barrels matching vibratory disk to choice and arrange the cap direction.
3. Automatic inspect caps whether lock completely after blockaged.
4. End product unloading material treats and counting the quantity, the quantity may reset at will..
5. Productivity speed according to the length of spiral tooth.
6. Control system uses touche screen, the flow and the fault automatic demonstration, the operation is easy.

【Item No.】CPCB series

【The feature of this type of machine】

1. Supply the tear off band with storage hopper match two vibrating disks.
2. Supply the cap by storage barrel and climbing conveyor.
3. Assembles station may assembly 2 pieces each time.
4. Productivity speed: 90 pieces per minute.
5. Control system uses PLC touch screen, the flow and the fault automatic demonstration, easy to operation.
6. Pneumatic source : 5kgs per square cm.
7. Machine dimension approx : 3200×2000×2340 mm (W×D×H).
