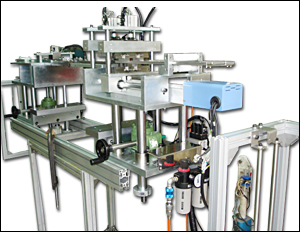

LED tape feeding & rewinding machine.
  Item No:IJLED - 500
 LED tape feeding & rewinding machine.[ IJLED-500 ]
The feature of this type of machine.
1.Coordinate to vertical type of injection moulding machine.
2.Feed and rewind LED tape automatically, including protective membrane.
3.Uses the precise sliding table, pull material accurate as well as the electric eye examination determination
 localization, dual protection establishment.
4.Coordinate to injection moulding machine and mechanical arm.
5.The man-machine interface touches controls type screen simply, easy to operation.
Back Top

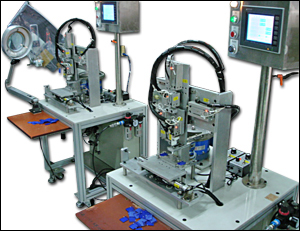

SD card collecting machine.
  Item No:IJSD - 450
 SD card collecting machine.[ IJSD-450 ]
The feature of this type of machine.
1.To coordinate to injection moulding machine and robot with XY axis may arranging the plate automatically.
2.Entire fold of empty plate, may deliver to robot for arrangement.
3.When put full material evacuation to enter the full plate to collect into fold.
4.Segment with robot may automatic production save the man-power cost.
Back Top

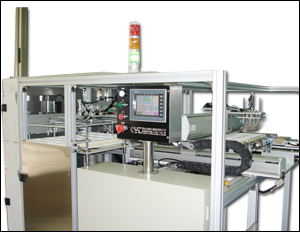

Don’t fall objects collecting machine.
  Item No:IJSB - 170
 Don't fall objects collecting machine.[ IJSB-170 ]
The feature of this type of machine.
1.Robot take out the end product from injction machine then put to the stationary position.
2.Collection machine will collect all end product from all cavity, then deliver to gathering plate and arrangement
 automatically.
3.Entire fold of empty gathering plate, can take and deliver end product to material area, when put full material
 evacuation to enter the full plate to collect into fold.
4.Empty gather plate quantity may establish according to height of the thing, may establish time interval at will,
 for example 3~4 hours once a time.
5.The man-machine interface touches controls the type screen simply, the operation convenient, the different
 product may establish the memory cut operation simply easy.
6.Most suits to use gathering plate vessel product to be as follows: SD card, about lid, switch-box outer cover,
 lens and so on.
Back Top
Insert mould feeding machine.
  Item No:IJIM - 3012
 Insert mould feeding machine.[ IJIM-3012 ]
The feature of this type of machine.
1.Coordinate to injection molding machine and robot to do insert moulding to inject the formation.
2.Arrange the thing to the appropriate position automatically for robot takes into mold for insert injection.
3.The thing is neat by various types organization arrangement, then delivers automatically wants to take the
 material position.
Back Top

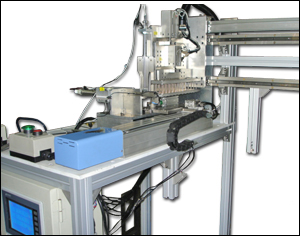

Razor piece feeding machine.
  Item No:IJRP - 12
 Razor piece feeding machine.[ IJRP-12 ]
The feature of this type of machine.
1.Coordinates to vertical injection moulding machine and insert moulding machine.
2.Entire fold the bit automatic peeling, and depends on cavity spacing automatic arrangement.
3.After the arrangement complete take the blade by the mechanical arm to put in the cavity.
4.May control deliver cavity number (may establish some several cavity doesn’t produce).
5.The man-machine interface touches controls the type screen simply, easy to operation.
Back Top
